vidaXL Self-centering Wood Chuck Set for 3,75 Inch Steel
vidaXL
vidaXL Self-centering Wood Chuck Set for 3,75 Inch Steel
$ 249 99
Tax will be calculated later

vidaXL Self-centering Wood Chuck Set for 3,75 Inch Steel

Description

This wood chuck set for 3.74 " (3,75 inches) is a mechanical device used to clamp a workpiece on a machine tool.

Made of steel, the set is durable and sturdy. As a machine tool accessory, it uses the radial movement of movable jaws evenly distributed on the chuck to clamp and position the workpiece. This wood lathe chuck set includes a 4 jaw self-centering chuck and interchangeable jaws for spindles, bowls, and work-pieces that are hard to be secured. The set will fit 1" x 8 TPI spindle.

Specifications

  • Colour: Red and black
  • Material: Steel
  • Number of jaws: 4
  • Self-centering
  • Chuck diameter: 3.74 " (3,75 inch)

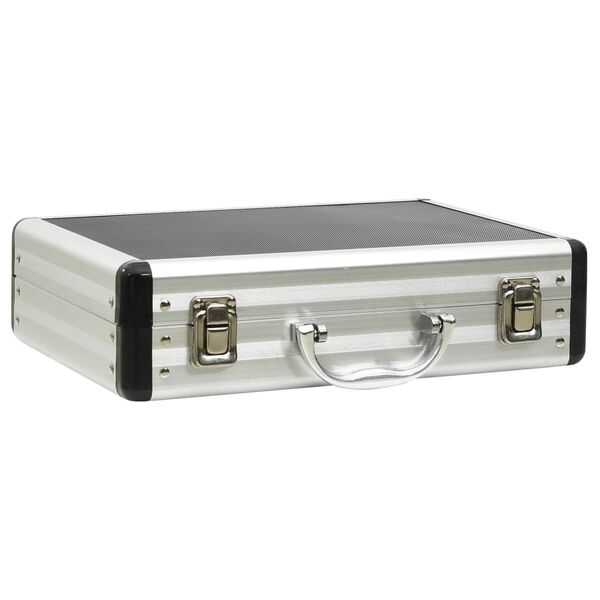

  • Carrying case dimensions: 12.0 x 8.9 x 3.0" (L x W x H)
  • Inside grip diameter range:
  • #1 Step jaws: 0.10 " - 1.38 "
  • #2 Round jaws: 1.26 " - 2.52 "
  • #3 Round jaws: 2.99 - 4.25 "
  • #4 Pin jaws: 0.37 " - 1.77 "
  • #5 Flat jaws: 2.87 "
  • Outside grip diameter range:
  • #1 Step jaws (Lower step): 1.50 " - 2.87 "
  • #1 Step jaws (Upper step): 0.75 " - 2.01 "
  • #2 Round jaws: 1.77 " - 3.15 "
  • #3 Round jaws: 3.54 " - 4.88 "
  • #4 Pin jaws: 0.98 " - 2.36 "
  • #5 Flat jaws: 5.12 "
  • Indexed backplate: 24 and 36 positions
  • Thread: 1" x 8TPI
  • Maximum speed: 3000 R/min
  • Net weight: 9.9 lb
  • Can hold round and square stock
  • Assembly required: Yes

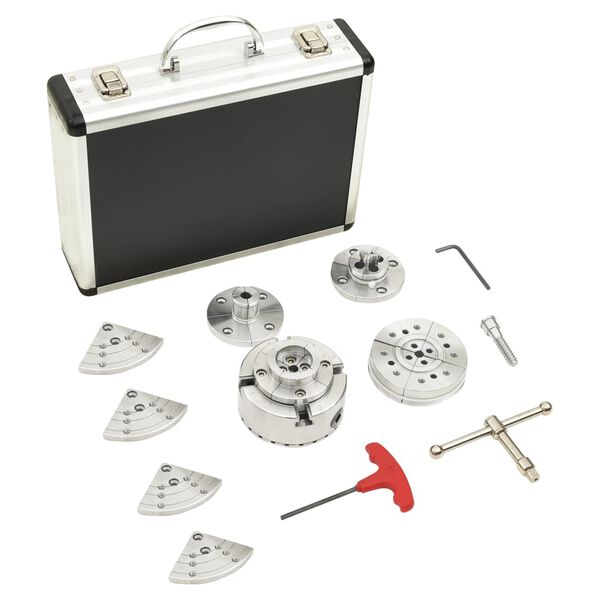

  • Delivery contains:
  • 1 x Chuck body
  • 1 x Carrying case
  • 1 x T-handle hex wrench 0.16 "
  • 1 x Lathe chuck key 0.31 "
  • 1x Woodworm screw
  • 1 x Hex wrench
  • 4 x #1 Step jaw
  • 4 x #2 Round jaw
  • 4 x #3 Round jaw
  • 4 x #4 Pin jaw
  • 8 x Flat head cap screw M5-.8x8
  • 8 x Grip studs 0.51 ", M6-1x6
  • 8 x Grip studs 0.71 ", M6-1x6
  • California Proposition 65

    WARNING: California's Proposition 65

  • EAN:8720286090619
  • SKU:147834
  • Brand:vidaXL
